二次電池評価装置、多チャネルCV、充放電測定装置

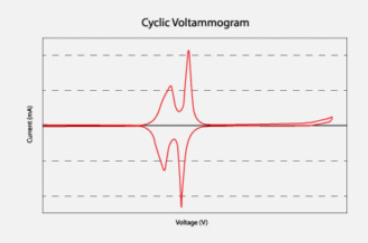

	リチウム電池のサイクリックボルタンメトリー測定

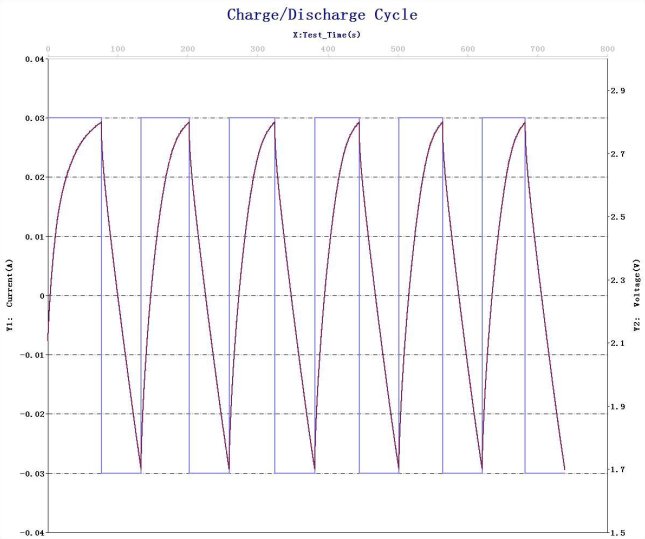

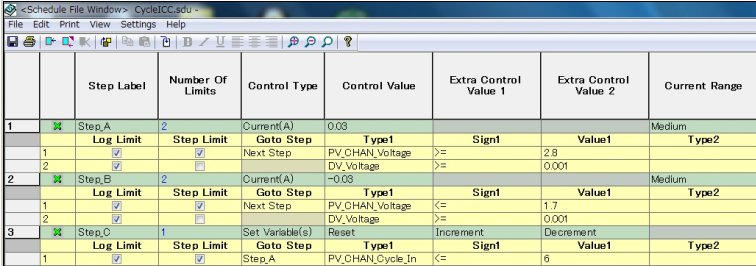

簡単なリチウム電池の充放電設定
StepA　0.03A充電、データ記録間隔：　電圧変化の1ｍV、電圧2.8Vになりましたら、StepBに行き、
StepB　-0.03A放電、データ記録間隔：　電圧変化の1ｍV、電圧1.7Vになりましたら、StepCに行き、
StepC　サイクリック数を数える、6に設定しました。6になる前に、StepAに行き

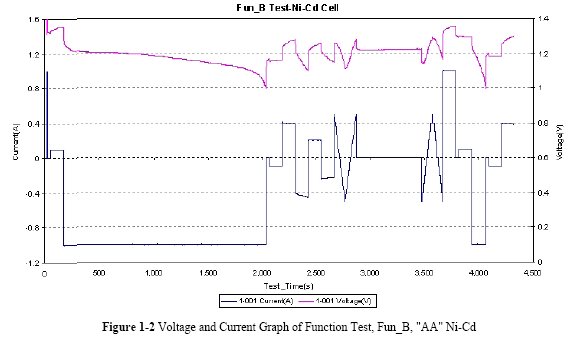

少し複雑電池の充放電設定
1. Rest for 20 seconds.
2. Charge at 1A for 2 minutes.
3. Rest for 30 seconds.
4. Discharge at 0.2 A for 2 minute.
5. Discharge at 1A for 2 minutes.
6. Rest for 30 seconds.
7. Discharge at 0.5 A for 2 minute.
8. Charge at a constant power of 0.5W for 2 minutes
9. Discharge at a constant power of 0.5W for 2 minutes
10. Charge at C/5 for 2 minutes.
11. Discharge with a constant load of 5Ω for 2 minutes.
12. Impose a current ramp sweeping from 0.5A to -0.5A at a rate of -10mA/second.
13. Impose a current ramp sweeping from -0.5A to 0.5A at a rate of 10mA/second.
14. Rest for 10 minutes.
15. Impose a current staircase that steps from -0.5A to 0.5A with the stair time = 10 seconds and the stair height = 100mA.
16. Impose a current staircase that steps from 0.5A to -0.5A with the stair time = 10 seconds and the stair height = -100mA.
17. Reset the discharge capacity calculation to zero. Increment the cycle number. Repeat the schedule n times.
